Main Technique Parameters
| Model | Main Performance - SMS | ||
| Product Net width | 1600mm | 2400 mm | 3200 mm |
| Working Speed | 400 m /min | 400 m /min | 400 m /min |
| Weight Range | 12-150gsm | 12-150gsm | 12-150gsm |
| Daily Output | 10-11tons/day | 14-16 tons/day | 20-22 tons/day |
| Machine dimension | 45x20x12 m | 45x21x12 m | 45x22x12 m |
| Model | Main Performance - SSMS | ||
| Product Net width | 1600mm | 2400 mm | 3200 mm |
| Weight Range | 8-100gsm | 8-100gsm | 8-100gsm |
| Machine dimension | 50x20x12 m | 50x21x12 m | 50x22x12 m |
| Working Speed | Medium : ≤500m/min | Medium : ≤500m/min | Medium : ≤500m/min |
| High : ≤600m/min | High : ≤600m/min | High : ≤600m/min | |
| Daily Output | Medium :13-14tons/day | Medium :18-20 tons/day | Medium :25-30 tons/day |
| High : 15-16 tons/day | High : 22-25 tons/day | High : 30-33 tons/day | |
| Model | Main Performance - SMMS | ||
| Product Net width | 1600mm | 2400 mm | 3200 mm |
| Weight Range | 8-100gsm | 8-100gsm | 8-100gsm |
| Machine dimension | 50x20x12 m | 50x21x12 m | 50x22x12 m |
| Working Speed | Medium : ≤400m/min | Medium : ≤400m/min | Medium : ≤400m/min |
| High : ≤500m/min | High : ≤500m/min | High : ≤500m/min | |
| Daily Output | Medium :12-13 tons/day | Medium :17-18 tons/day | Medium :23-26 tons/day |
| High : 14-16 tons/day | High : 20-22 tons/day | High : 27-30 tons/day | |
| Model | Main Performance - SSMMS | ||
| Product Net width | 1600mm | 2400 mm | 3200 mm |
| Weight Range | 8-100gsm | 8-100gsm | 8-100gsm |
| Machine dimension | 60x20x12 m | 60x21x12 m | 60x22x12 m |
| Working Speed | Medium : ≤500m/min | Medium : ≤500m/min | Medium : ≤500m/min |
| High : ≤600m/min | High : ≤600m/min | High : ≤600m/min | |
| Daily Output | Medium :15-16tons/day | Midium :22-23 tons/day | Medium :29-32 tons/day |
| High : 18-19 tons/day | High : 26-27 tons/day | High : 34-37 tons/day | |

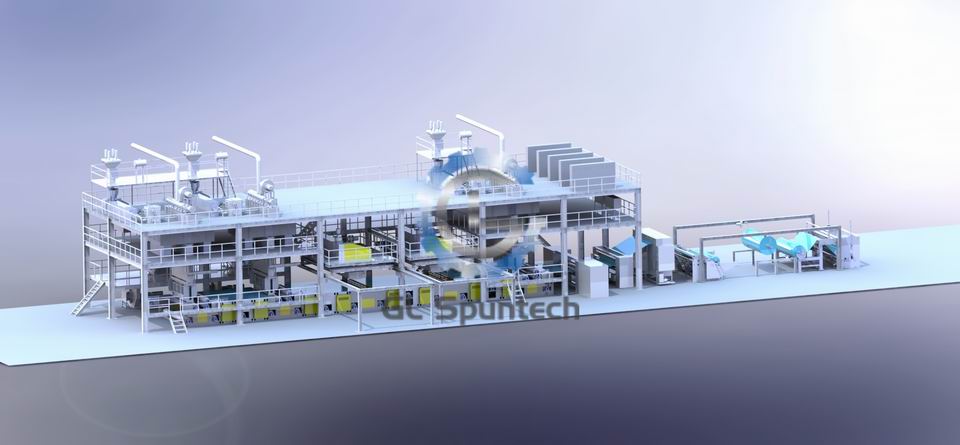

1. Spunbond & meltblown composite line realized the production process of spunbond & meltblown in one-step and combination. The whole line adopt AC inverter adjusts speed, full digital synchronized communication, intelligent control of the full line electrical system, spinning draft system and drive system etc.
2. Pneumatic parts, electric parts and operate parts adopt international well-known brand.
3. HMI: adopts IPC to monitor and manage the whole production process.
4. Spunbond die: Hanger type flow channel, ensure uniform of melt distribution, shortening the color change time and uniform spinning of full width.
5. Meltblown die, the spinning process is arranged symmetrically on both sides of the body, to ensure uniform melt distribution, stable pressure, sufficient hot draft of the filament, uniform width of hot air flow, to achieve fabric surface evenness.
6. Features of the equipment: advanced airflow draft technology and high speed web curtain forming technology, with digital control system, so the product with good uniformity, high vertical and horizontal tensile strength and low process power consumption.
7. Features of the product: can produce SS, SMS, SMMS, SSMMS or SMMMS nonwoven fabric in accordance with the equipment beams quantity. Products with better strength, softer, good fiber fineness, ultra-light weight, breathable and strong hydrostatic pressure resistance, keep away from dust, liquid, virus and bacteria.
8. Product application: Hygiene industry, medical industry, filtration material and other field.
